Lesson 4 · Parameters & Customization

Module 1 · Learning to Drive

Lesson 4 · Parameters & Customization

50–60 minPhase A · Blockly FoundationFlexible functions

👩‍🏫

Teacher mode is on. Toggle it off (bottom-right) to preview the student view.

Your square function always draws the same size square. What if you want a big one, then a small one? You could write square_big and square_small… but that's the copy-paste problem all over again. The fix is a parameter — a slot you fill in each time you call the function.

Learning Objectives

By the end of this lesson you will be able to:

• Explain what a parameter is — an input that changes what a function does
• Add a parameter to a Blockly function using the gear icon and the mutator bubble
• Find that parameter in the Variables palette and use its value inside the function body
• Call one function with different arguments to get different results

📄

Printable knowledge checks — the 5 questions from this lesson on one page, with room to write. Teachers: answer key.

One function, any size

A parameter is like a blank in a recipe: instead of "add 1 cup of sugar," it says "add this much sugar," and you decide how much each time you cook. For our square function, the blank is the side length — we'll name the parameter side_length:

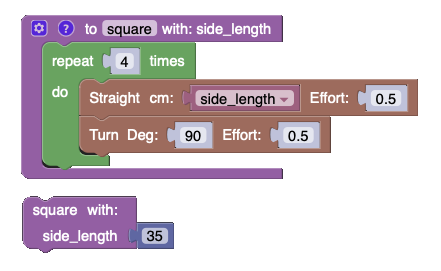

The square function with a side_length parameter — the Straight block's cm holds the parameter instead of a number — and a call that passes 35.

See how the Straight block's cm slot holds the parameter instead of a fixed number, and the call at the bottom fills it in with 35. Now one function draws every size — just pass a different value each time you call it:

call square (side_length: 35)     → medium
call square (side_length: 60)     → big
call square (side_length: 20)     → small

Getting there takes two moves that aren't obvious from looking at the blocks: first you add the parameter to the function, then you use its value inside the body. They happen in two different places, which is why it's easy to do one and forget the other.

Here's the whole build, start to finish — about a minute and a half, no sound. Watch it once for the shape of it, then work through the written steps below at your own pace.

Building square (side_length) in XRP Code: name the function, add the parameter with the gear icon, build the body inside a Repeat 4, feed the parameter to Straight from the Variables palette, then call it twice — 20 cm and 30 cm.

Adding the parameter: the gear icon

Look at the top-left corner of your square definition block. There's a small blue gear icon. Most blocks don't have one — the gear means "this block can change shape," and a function's shape is exactly what you're about to change.

1 · Click the gear. A small bubble opens next to the block with its own tiny workspace. In the grey strip on the left of the bubble is a block that says input name: x. To its right is a block labelled inputs with an empty notch inside it.

2 · Drag input name: x into the inputs block. Grab it from the grey strip and snap it into the notch. Watch the definition block behind the bubble as you let go — it grows a new row reading with: x. That's your parameter. It already exists; it just has a terrible name.

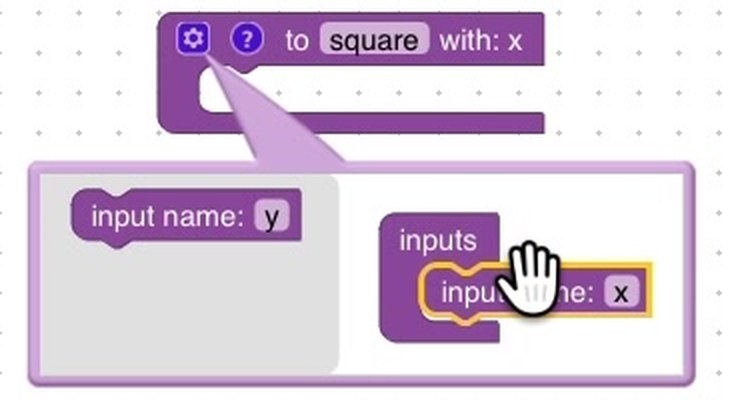

Snap the input into the inputs block. The function grows a 'with:' row the moment it connects.

3 · Rename it. Click the word x on the block you just dropped in, type side_length, and press Enter. Use underscores, not spaces, and pick the name you'd want in Python later, because in Lesson 10 you'll write this same function in text. Short names are worth a thought here: the name rides along on the definition, on every call block and on the variable block you'll drag into the body, so a long one makes for wide blocks.

4 · Close the bubble by clicking the gear again. Your definition now reads to square with: side_length.

Need a second parameter? Open the gear again and stack another input name block underneath the first. The top-to-bottom order in the bubble is the left-to-right order of the arguments, so it matters — polygon (sides, side_length) in the next lesson is not the same function as polygon (side_length, sides).

Knowledge Check

You click the gear on a function block and drag an 'input name' block into the 'inputs' block. What happens to the function definition?

Using the parameter: the Variables palette

The function now accepts a side length, but the Straight block inside it is still set to a hard number, so nothing has actually changed yet. You need a block that says "whatever value was passed in" — and that block is waiting in the palette.

Open the Variables category, near the bottom of the palette. Past Create variable… and the set and change blocks, there's a small rounded block named side_length. Adding the parameter created it; you don't have to make it.

Every variable block carries a dropdown arrow, so if you grab the wrong one — easy once a project has a few variables with similar names — you can switch it from the dropdown instead of starting over.

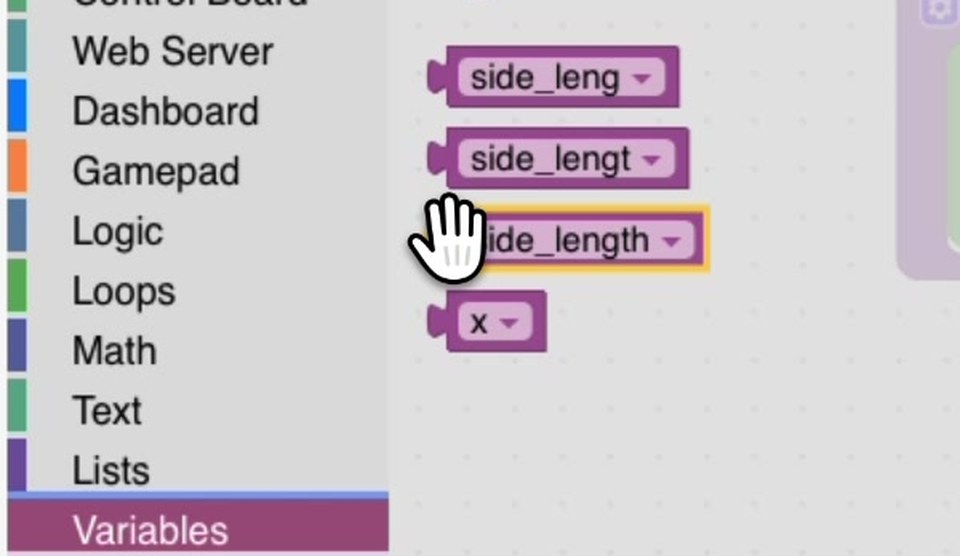

A parameter shows up in Variables automatically — that rounded block is how you read its value. This workspace has a few half-typed leftovers too, which is exactly why you read the name before you drag.

Drag side_length into the cm slot of the Straight block, straight on top of the number sitting there. The number doesn't pop out and it isn't deleted — it's tucked underneath, and it comes back if you ever pull the variable out again.

You can use the same parameter as many times as you like inside the function.

Now the calls. Open the Functions category and the call block there has changed shape too — it reads square with: side_length and carries a socket for the value. Drag one out, type 20 into the socket, drag out a second and type 30, and snap them together into a stack.

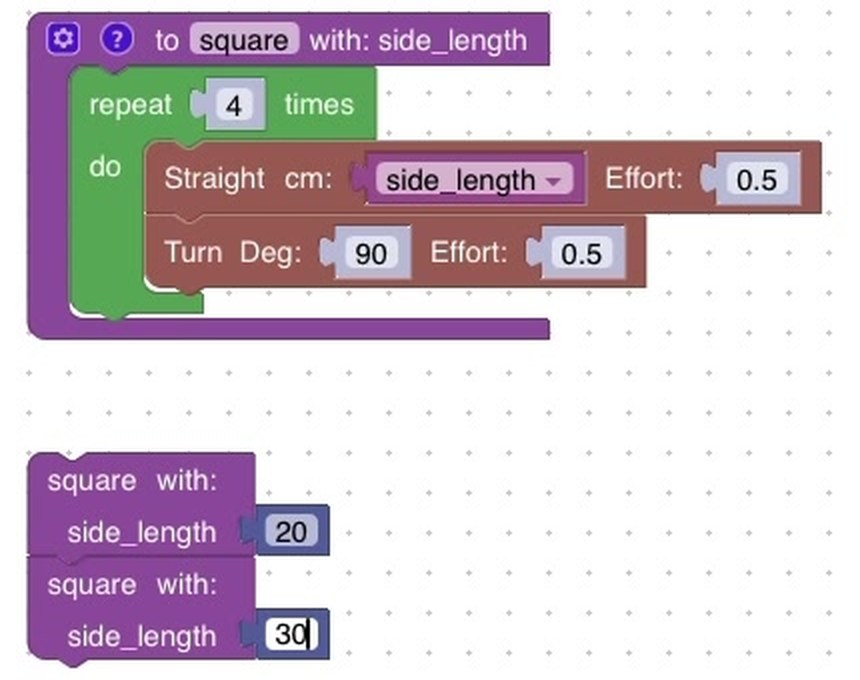

The finished function, and below it two calls — 20 cm and 30 cm. Two sizes, one function. This is the payoff.

Knowledge Check

Inside the function body, where do you get a block that holds the parameter's value?

Demo this one live — slowly

This is the one piece of Blockly UI that nobody discovers on their own. Project it and narrate each move, especially the mutator bubble: students expect a menu or an "Add Input" button, and instead they have to drag a block inside another block in a floating mini-workspace. Several will drop the input next to the inputs block rather than inside it and see nothing happen — the tell is a definition block with no with: row.

The screencast at the top of this section is silent by design — project it, pause it wherever you want to talk, and let it run again. It's also the fastest way to get a student who fell behind back to the same place as everyone else.

Two more predictable snags. (1) They rename the input but never visit Variables, so the body still uses a fixed number — the function ignores its argument, and the symptom is that every call draws the same square. (2) They drag the side_length block out of the function and into the main program, where it has no value; it only means something inside the function that declares it. If a student deletes a parameter later, any side_length block left in the body becomes a plain variable that's never set — clean those out with them.

Parameter vs. argument

Two words that sound similar and trip everyone up:

• Parameter — the name in the definition: the side_length in square (side_length). It's the empty slot.
• Argument — the value you pass in when you call it: the 50 in square (side_length: 50). It's what fills the slot.

Knowledge Check

In the call square (side_length: 50), what is the 50?

Knowledge Check

With square (side_length), calling square (side_length: 35) makes the robot drive each side how long?

Activity · Make your functions flexible

1. Add a side_length parameter to your square function — gear icon, then the Variables palette — and call it at three different sizes. If all three squares come out identical, you've done the first half and not the second: check what's actually sitting in the Straight block's cm slot.
2. Do the same for triangle — one function, any size triangle.
3. Challenge: add a second parameter, effort, and use it for the Effort on your Straight and Turn blocks: square (side_length, effort). Then ask yourself whether it earns its keep — next lesson's polygon function takes sides and side_length only, and leaves Effort at 0.5.

Knowledge Check

A function is defined as draw rectangle (length, width). Are draw rectangle (50, 30) and draw rectangle (30, 50) the same?

Differentiation

More support: pair them up and have one student talk the other through the gear sequence from the lesson without touching the mouse — saying it out loud is what makes it stick. More challenge: preview Lesson 5 by adding a sides parameter and computing the turn as 360 ÷ sides, or add effort and compare the robot's behaviour at 0.3 and 0.8.

Real-world connections

Parameters are everywhere you customize something without rebuilding it:

Print

Print dialog

"Copies," "paper size," and "color" are parameters — one print function, many outcomes.

Games

Difficulty settings

Easy / hard is a parameter fed into the same game code to change enemy speed and health.

Robotics

Motion commands

"Drive to (x, y) at speed s" — real robot commands are functions with parameters just like yours.

Wrap-up

• What does a parameter let one function do? (Behave differently each time, based on the value you pass.)
• Parameter vs. argument? (Parameter = the name/slot; argument = the value you pass in.)
• Why does parameter order matter? (Arguments fill the slots in order.)

Assessment & next lesson

Formative: can students add a parameter with the gear icon, use it in the body, and call with different arguments? Exit ticket: "Given triangle (side_length), what does triangle (40) drive per side?" (40 cm). Preview: next lesson we combine a parameter with the 360 ÷ sides math to build one polygon function that draws any regular shape.

Resources

• XRP Code IDE
• XRP Robot User Guide
